Main Processor      : Industrial-grade processor
Operating System      : Embedded Linux
Operating Interface      : Web; Local GUI

SMD Plus by Recorder      : 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera       : 36 channels

Irregular Black Block Masking by Recorder      : 1 channel

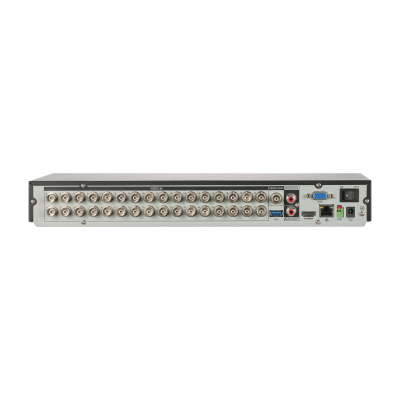

Analog Camera Input      : 32 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect
Camera Input      : 1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps., 2. TVI: 1080p@25/30 fps; 720p@25/30 fps., 3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input      : Up to 20 channels of IPC access 4 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled
Encoding Capacity      : Main stream: the 1st channel 1080N/720p@(1 fps-25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps))
Dual-stream      : Yes
Video Bit Rate      : 32 kbps–4096 kbps
Audio Sampling      : 8 kHz, 16 bit
Audio Bit Rate      : 64 kbps
Video Output      : 1 HDMI, 1 VGA, HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display      : 1/4/8/9/16/25/36
Third-party Camera Access      : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Video Compression      : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression      : G.711a; G.711u; PCM

Network Protocol      : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access      : iOS; Android
Interoperability      : ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser      : Chrome; IE; Safari; Edge; Firefox

Record Mode      : General; alarm; motion detection
Recording Playback      : 1/4/9/16
Backup Method      : USB device and network
Playback Mode      :  Instant playback; general playback; event playback; tag playback; smart playback

Disk Group      : Yes

General Alarm      : Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm      : Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm      : SMD Plus
Alarm Linkage      : Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

CVBS Output       : 1 channel
Audio Input      : 1-channel RCA, 32-channel BNC (Coaxial Audio)
Audio Output      : 1-channel RCA
Two-way Talk      : Yes (share the same audio input with the first channel)
Disk Interface      : 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature
RS-485      : 1
USB      : 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI      : 1
VGA      : 1
Network Port      : 1 (10/100 Mbps Ethernet port, RJ-45)

Power Supply      : 12 VDC, 4 A
Power Consumption      : <12 W (without HDD)
Net Weight      : 1.92 kg (4.23 lb)
Gross Weight      : 3.09 kg (6.81 lb)
Product Dimensions      : 375.0 mm × 289.6 mm × 53.0 mm (14.76″ × 11.40″ ×
2.09″ ) (W × D × H)
Packaging Dimensions      : 433.0 mm × 141.0 mm × 366.0 mm (17.05″ × 5.55″ × 14.41″) (W × D × H)
Operating Temperature      : –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature      : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity      : 10%–90% (RH), non-condensing
Installation      : Desktop
Certifications      : CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
